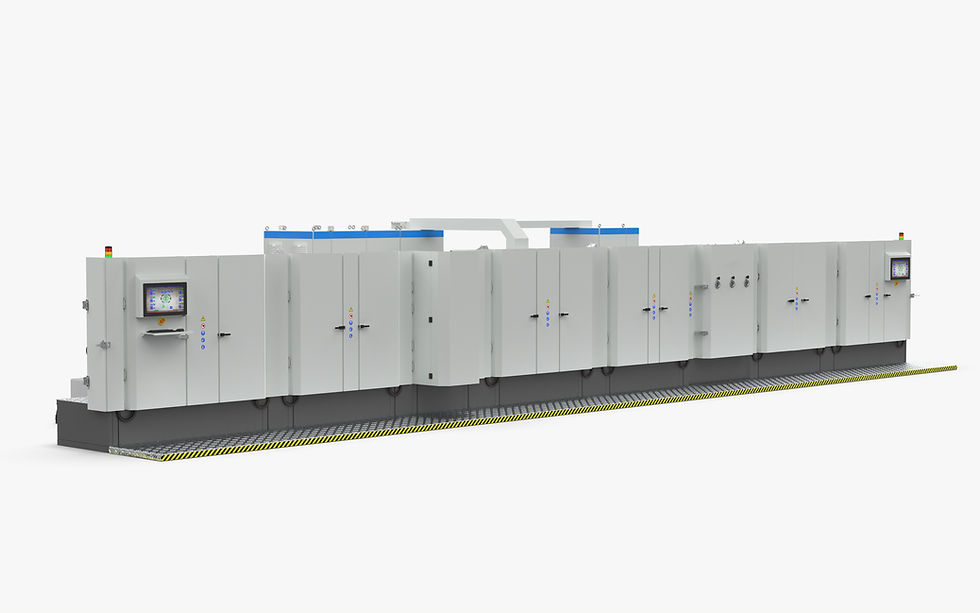

Hydrogen Energy Bipolar Plate Coating Equipment
Product Introduction
Hydrogen fuel cells are clean, safe, and reliable power sources that generate stable electrical energy through the reaction of hydrogen and oxygen. They serve as primary and backup power sources for new energy vehicles, with diverse applications across various sectors. We offer advanced equipment for the coating of hydrogen fuel cell membrane electrode monomers and bipolar plates, capable of supporting needs from experimental stages to mass production. Our metal bipolar plate coatings deliver physical and chemical properties comparable to those of graphite bipolar plates, ensuring high performance and durability.
Key Features
Cost Reduction: Streamlines operations to lower production costs.
High Efficiency: Enables continuous production to maximize output.
Fully Automated Control: Ensures precision in the coating process through automated systems.
Comprehensive Support: Offers venue planning, process assistance, and training for seamless implementation.
Key Specs
Device Model | SP-1812AS | SP-2112AS | SP-2417ASI | SP-5113ASI |
Vacuum Chamber Size (mm) | 1800×1200 | 2100×1200 | 3400×1700 | 5100×1300 |
Maximum vacuum | 6.0E-4Pa | |||
Air Extraction Time | Ambient Pressure to 5.0E-3Pa in less than 30 mins | |||
Pressure Rise Rate | 1h≤0.5Pa | |||
Vacuum pump Set | Mechanical pump, Roots pump, Molecular Pump, Maintaining Pump | |||
Heating System | Room temperature to 300 ℃ (PID controlled) | |||
Air Injection System | Mass flow controller (1-4set) | |||
Targets | Cylindrical Target, Filter Arc Target, Pillar Sputtering Target, Plane Arc Target, Plane Sputtering Target | |||
Power Supply | MF Sputtering Power Supply, Arc Power Supply, High | |||
Workpiece Rotation Method | Vertical Linear or Reciprocating Linear | |||
Operating Method | Manual+Semi-Automatic+Fully Automatic+PLC+IPC | |||
Note | Specifications can be fully customized according to customer's product and recipe requirements | |||
